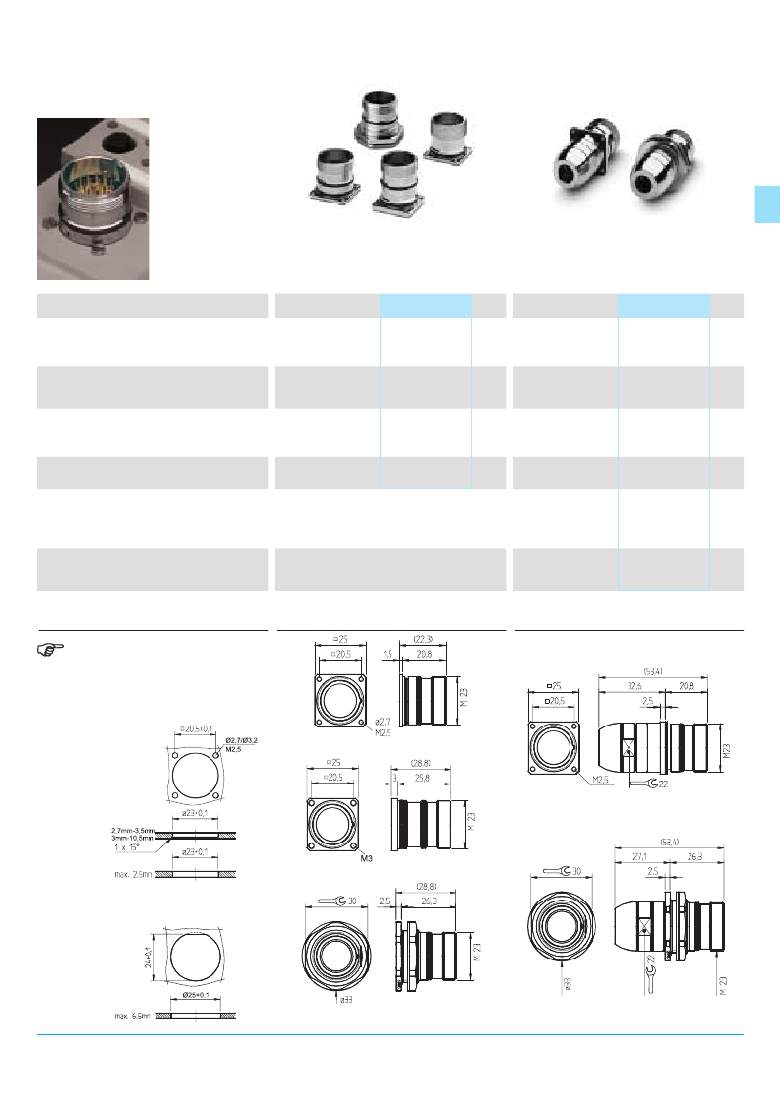

M23 ? RC Series
Panel Mounting Bases
Rear Mounting
Panel mounting bases
for rear mounting are
designed for the
efficient installation of
preassembled printed
circuit boards, for
example. These bases
are fed through the
mounting panel from
the inside and screwed
tight from the outside.
Panel mounting bases for
rear mounting
AIL..., AIS...
Cable connecting receptacles for
rear mounting
AIGG, AIGZ
Description
Wall thickness
Type/housing
Order No.
Pcs./
Type/housing
Order No.
Pcs./
[mm]
design
Pkt.
design
Pkt.
Panel mounting base,
internal, low design, threaded flange
radial O-ring,
4-hole thread mounting (M2.5)
2.7-3.5
AILG
RC-00000004200
10
Panel mounting base,
internal, low design, drilling flange
radial O-ring,
4-hole mounting (? 2.7)
2.7-3.5
AILB
RC-00000005200
10
Panel mounting base,
internal, high design, threaded flange,
with 3 mm flange, radial O-ring,
4-hole thread mounting (M3)
3-10.5
AISG
RC-0000000E000
10
Panel mounting base,
internal, high design,
central fixing nut , axial O-ring
up to 6.5
AISZ
RC-0000000H000
10
Connecting housing,
internal, shielded , 4-hole thread
mounting (M2.5), flat gasket,
AIGG
RC-0000000C0FZ
10
for wall bushing for a shielded
cable
Connecting housing,
internal, shielded , central fixing nut,
up to 2.5
axial O-ring, for wall bushing
for a shielded cable
up to 6.5
AIGZ
RC-0000000Q0FZ
10
For shielded cable glands,
see pages 20-21
Unlike plugs, connectors must not be
plugged in or unplugged under load, in
order to avoid damage caused by contact erosion.
Installation dimensions
AILG, AILB,
Radial O-ring
AILG, AILB
AISG, AIGG
Flat gasket
AIGG
Radial O-ring
Radial O-ring
Flat gasket
AISG
Installation dimensions
AISZ, AIGZ
Axial O-ring
Axial O-ring
Axial O-ring
AISZ
AIGZ
Signal / Universal ? Edition 03/04
